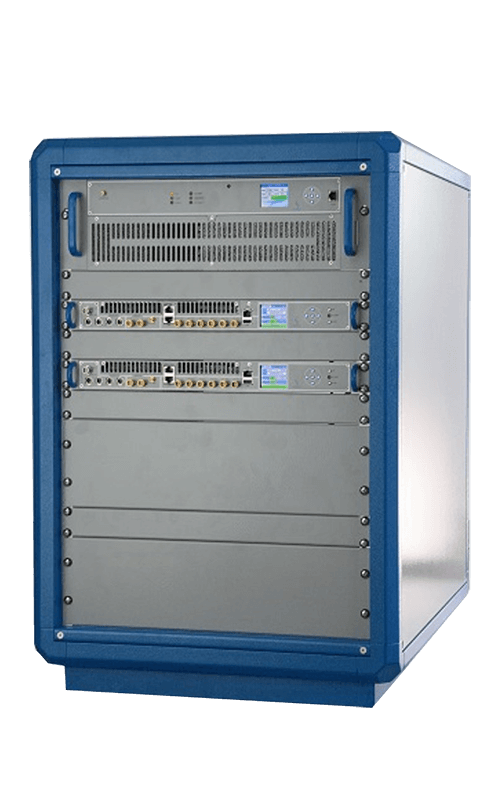

SFT DAB SERIES – MODULAR – AIR

High technology level in both Digital Signal Processing and RF domain

Thanks to great digital adaptive precorrection and configuation flexibility, the Hot Swap System technology, the compactness and the smart system design, the SFT DAB are advanced transmitters. They support standards DAB, DAB+ and T-DMB and are compatible with major headend brands.

Model list

For more detailed and specific technical information download the brochure below

LOW POWER MODELS

  • SFT DAB 300/M
  • SFT DAB 600/M
  • SFT DAB 1200/M

HIGH POWER MODELS

  • SFT DAB 2400/M
  • SFT DAB 3500/M
  • SFT DAB 4500/M
  • SFT DAB 5500/M
  • SFT DAB 6500/M
  • SFT DAB 7500/M
  • SFT DAB 10000/M

TECHNOLOGIES

UAS

The Universal Adaptiveness System is the result of years of research and represents the state of the art of DTV transmitter technology worldwide. This system guarantees an incredible hardware configuration capability, using a very simple and intuitive software that is accessible both from the hardware itself and remotely. It is perfect for international broadcasters to increase the manageability of investments by reducing the types of transmitters and for national broadcasters thanks to its versatility in operating modes and configuration. The UAS can allow the user to set up the machine as a transmitter, heterodyne transposer, regenerative transmitter and gap filler, all in one hardware component.

SWDT®

SWDT® (Software Defined Transmitters) technology implement different modulation patterns, either digital or analog (DVB, ATSC, ISDB-T, DTMB, DAB, DAB+, T-DMB, ATV, etc.) in the same hardware. It allows an easy selection of the operating modes remotely, via SNMP commands, via TCP/IP or even via a dedicated command inserted into the transport stream.

APS

Anodized Protection System, is a special treatment applied to the surface of the aluminium body of the transmitters and to some of its components, preventing corrosion due to humidity or sudden changes in temperature and increasing reliability and longevity.

Q

HSS

With the Hot Swap System present in the transmitters it is possible to carry out maintenance on the power supplies with the machine on and on the air in less than 5 minutes as well as for the amplifiers in modular transmitters. Even the cooling fans can be removed, cleaned or replaced in just 5 minutes thanks to their placement outside the machine.

Q

RCS

Responsive Cooling System is an optimized and highly efficient cooling system. Thanks to the ability to react to changes in temperature of the transmitter or the environment, the system guarantees correct operation and optimal performance even in extreme climatic conditions or in the presence of high temperatures. The cooling system keeps the heat sink temperature at optimum levels.

Q

AIR

The DB air cooling system not only prevents the device from overheating but extends the life of the transistors by far. In the transmitters and amplifiers the fans are mounted externally to allow easy and quick cleaning, or possible replacement, without opening or removing any module and without interrupting the operation of the transmitter.

Q

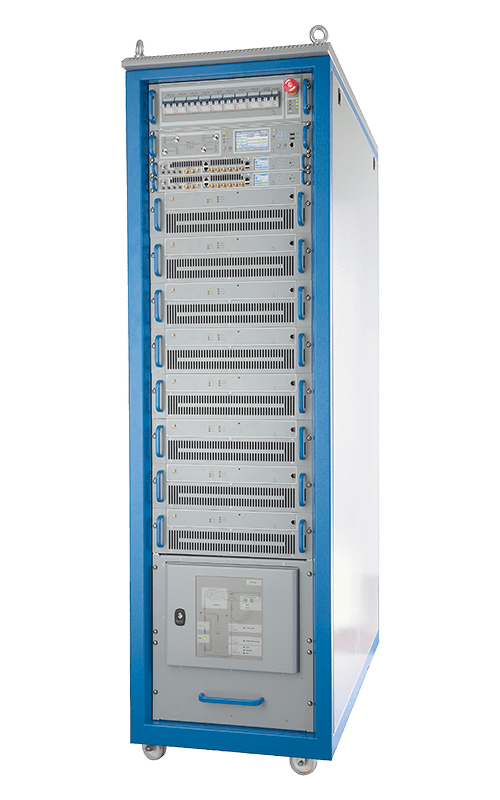

LIQUID

An oversized heat exchanger, single or double (optional), suitable for outdoor or indoor installation, and equipped with single or double pumping system (optional) for maximum redundancy, is the main component of DB's powerful liquid cooling system. Thanks to the special design of the liquid cooled heat sinks inside the amplifier and the low pressure liquid distribution, this system ensures high reliability, cooling efficiency and ease of installation. Compared to the air cooling system, the liquid cooling system brings several advantages, such as:

  1. Correct operation even in extreme climatic conditions
  2. Significant reduction in the amount of air conditioning required
  3. Correct operation in dusty environments, with high humidity or salinity
  4. Very low acoustic noise
  5. Low thermal dispersion in the environment
  6. Longer life of transistors and active components thanks to their continuous operation at lower temperatures.

WEB

Extremely detailed and intuitive web interface with all main parameters fully controllable and adjustable. Ability to remotely check the status of the transmitter and set malfunction alerts via e-mail and/or trap for prompt intervention. Firmware that can also be updated remotely and an easy back-up system for personal data and configuration.

Q

N+1

The N+1 logic control units reduce the need for multiple backup transmitters by ensuring automatic switching in the event of a failure and automatic loading of the faulty transmitter configuration onto the spare one for a system always at full power.

design

SMART DESIGN

Thanks to its research and development center, DB is constantly working to improve the design of its products so that the interaction between user and devices is always easier, more intuitive and maintenance faster and cheaper. The clever placement with direct access of the fans in the back and outside of the transmitters and amplifiers and that of the power units with easy access are the result. Such as the combination of latest generation RF combiner technology with ultracompact unbalancing dummy loads and a smart intercommunication interface between RF modules, drivers, and Logical Control System.

Q

COMPACT DESIGN

The compact design of the transmitter allows the latter to be used in environments with limited space and grants an easier and economical logistics management.
Q

HIGH SCALABILITY

The special design of the transmitters and amplifiers allows multiple configurations with high scalability which guarantees maximum flexibility and simplicity in the management of spare parts.

INTL STANDARDS

Meets or exceeds all safety standards and international electrical specifications.

Q

COLOR DISPLAY

LCD display for easy navigation, viewing and setting management.

Q

CONTROL PANEL

Front panel with simple and intuitive controls. Buttons for direct activation of main parameters and indicator lights showing their status and signaling any malfunctions.

Q

built-in tech

65:1

Device equipped with VSWR (Voltage Standing Wave Ratio) 65:1 built-in protection to prevent load mismatch failures.

SFN

Capace di trasmettere in SFN (rete a frequenza singola)

Technologie DDS

Technologie DDS (Direct Digital Synthesis)

Oscillateur OCXO

Oscillatore OCXO

Seamless Switch

Swichting sans interruption de l'entrée (scambio senza ritardi) - ASI, GBE, SAT (si présent), RF (si présent), EDI/ETI (pour la modulation DAB)

Q

GPS System

GPS Glonass, Galileo, BeiDou intégrés

OPTIONALS

Alimentation électrique

Alimentazione elettrica ridondante
