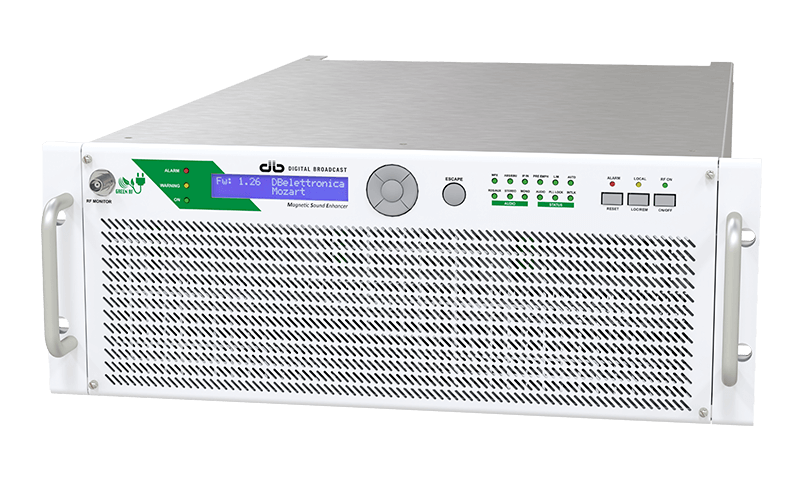

mozart next series

Cutting-edge technology in an innovative design

The Mozart Next series is the new generation of transmitters that stands out for a high level of quality, reliability and efficiency thanks to the presence of cutting-edge technologies that ensure superior performance; all in a compact and intelligent design that allows a simpler and more intuitive interaction by the user and makes maintenance much easier and more economical.

Model list

For more detailed and specific technical information download the brochure below

LOW POWER MODELS

  • Mozart Next 30
  • Mozart Next 50
  • Mozart Next 100
  • Mozart Next 300
  • Mozart Next 500
  • Mozart Next 1000

MEDIUM POWER MODELS

  • Mozart Next 2000
  • Mozart Next 3000
  • Mozart Next 3500
  • Mozart Next 6000
  • Mozart Next 7000

TECHNOLOGIES

GRF

GreenRF technology is the evolution of the COLD-FET technology adopted by DB for its transmitters. With the use of special high performance LDMOS transistors, this technology brings innumerable advantages, among which a high RF efficiency (> 70%), high reliability and safety, less heating and AC power consumption, which lead to a very longer transmission life.

Q

MSE

MSE (Magnetic Sound Enhancer) is the DB technology which consists of a magnetic barrier that protects the VCO (Voltage Controlled Oscillator), the heart of the FM modulator, significantly increasing the sound quality.

Q

ACS

Automatic Current Sharing technology consists of an automatic current balancing system and a perfect load distribution, creating optimal power operating conditions that lead to maximum redundancy. As a result, the output power loss in the event of a power failure is extremely low and, in a dual power supply configuration, the power loss in the event of a power unit failure is less than 35%.

Q

APS

Anodized Protection System, is a special treatment applied to the surface of the aluminium body of the transmitters and to some of its components, preventing corrosion due to humidity or sudden changes in temperature and increasing reliability and longevity.

Q

HSS

With the Hot Swap System present in the transmitters it is possible to carry out maintenance on the power supplies with the machine on and on the air in less than 5 minutes as well as for the amplifiers in modular transmitters. Even the cooling fans can be removed, cleaned or replaced in just 5 minutes thanks to their placement outside the machine.

Q

RCS

Responsive Cooling System is an optimized and highly efficient cooling system. Thanks to the ability to react to changes in temperature of the transmitter or the environment, the system guarantees correct operation and optimal performance even in extreme climatic conditions or in the presence of high temperatures. The cooling system keeps the heat sink temperature at optimum levels.

Q

AIR

The DB air cooling system not only prevents the device from overheating but extends the life of the transistors by far. In the transmitters and amplifiers the fans are mounted externally to allow easy and quick cleaning, or possible replacement, without opening or removing any module and without interrupting the operation of the transmitter.

Q

WEB

Extremely detailed and intuitive web interface with all main parameters fully controllable and adjustable. Ability to remotely check the status of the transmitter and set malfunction alerts via e-mail and/or trap for prompt intervention. Firmware that can also be updated remotely and an easy back-up system for personal data and configuration.

Q

N+1

The N+1 logic control units reduce the need for multiple backup transmitters by ensuring automatic switching in the event of a failure and automatic loading of the faulty transmitter configuration onto the spare one for a system always at full power.

Q

design

SMART DESIGN

Thanks to its research and development center, DB is constantly working to improve the design of its products so that the interaction between user and devices is always easier, more intuitive and maintenance faster and cheaper. The clever placement with direct access of the fans in the back and outside of the transmitters and amplifiers and that of the power units with easy access are the result. Such as the combination of latest generation RF combiner technology with ultracompact unbalancing dummy loads and a smart intercommunication interface between RF modules, drivers, and Logical Control System.

Q

COMPACT DESIGN

The compact design of the transmitter allows the latter to be used in environments with limited space and grants an easier and economical logistics management.
Q

INTL STANDARDS

Meets or exceeds all safety standards and international electrical specifications.

Q

COLOR DISPLAY

LCD display for easy navigation, viewing and setting management.

Q

CONTROL PANEL

Front panel with simple and intuitive controls. Buttons for direct activation of main parameters and indicator lights showing their status and signaling any malfunctions.

Q

BUILT-IN TECH

Stereo Generator

Stereo Generator: high performance built-in digital stereo encoder that provides separation typical > 65dB.

Q

65:1

Device equipped with VSWR (Voltage Standing Wave Ratio) 65:1 built-in protection to prevent load mismatch failures.

Frequency Agile Broadband

Frequency Agile Broadband

Q

Encodeur RDS

Encoder RDS (Sistema dati radio)

Q

OPTIONALS

AES/EBU

AES/EBU digital stereo audio interface

Q

Audio Over IP

Audio Over IP

Q

RDS

Radio Data System

Q

Alimentation électrique

Alimentazione elettrica ridondante

Q

Feel free to contact us for any type of assistance you need
