PFG NEXT SERIES

Efficiency, versatility and simplicity at the highest levels

The PFG NEXT series of modular FM transmitters are the best combination of efficiency, versatility and simplicity thanks to the state-of-the-art technology present and their innovative design. Thanks to the various available configurations, these transmitters can grant the best solution matching network requirements and granting maximum robustness and highest efficiency operation at the very competitive price. With the introduction of an intelligent Automatic Current Sharing Technology, the PFG NEXT can work in the worst fault conditions whilst maintaining the highest output power everseen. Moreover thanks to the Hot Swappable Technology maintenance cost and time are drastically reduced.

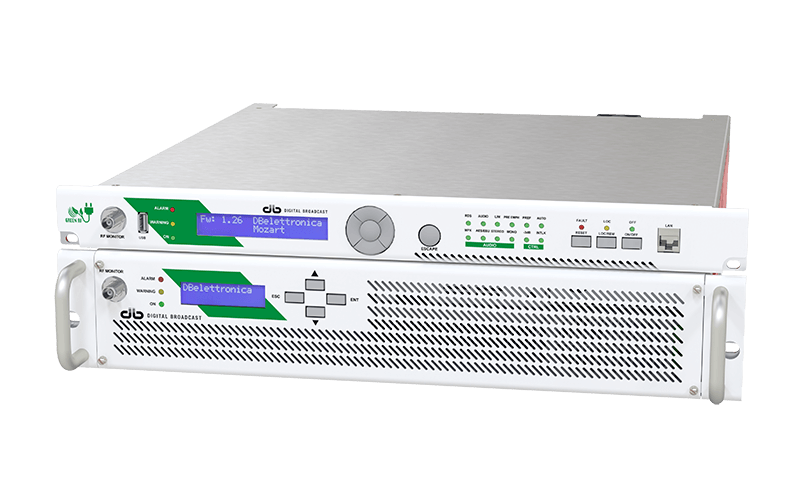

PFG NEXT 10000

Model list

For more detailed and specific technical information download the brochure below

LOW POWER MODELS

  • PFG NEXT 1000

MEDIUM POWER MODELS

  • PFG NEXT 2000
  • PFG NEXT 3000
  • PFG NEXT 3500
  • PFG NEXT 6000
  • PFG NEXT 7000

HIGH POWER MODELS

  • PFG NEXT 10000
  • PFG NEXT 12000
  • PFG NEXT 15000
  • PFG NEXT 20000
  • PFG NEXT 25000
  • PFG NEXT 30000
  • PFG NEXT 40000

TECHNOLOGIES

GRF

GreenRF technology is the evolution of the COLD-FET technology adopted by DB for its transmitters. With the use of special high performance LDMOS transistors, this technology brings innumerable advantages, among which a high RF efficiency (> 70%), high reliability and safety, less heating and AC power consumption, which lead to a very longer transmission life.

Q

MSE

MSE (Magnetic Sound Enhancer) is the DB technology which consists of a magnetic barrier that protects the VCO (Voltage Controlled Oscillator), the heart of the FM modulator, significantly increasing the sound quality.

Q

ACS

Automatic Current Sharing technology consists of an automatic current balancing system and a perfect load distribution, creating optimal power operating conditions that lead to maximum redundancy. As a result, the output power loss in the event of a power failure is extremely low and, in a dual power supply configuration, the power loss in the event of a power unit failure is less than 35%.

Q

APS

Anodized Protection System, is a special treatment applied to the surface of the aluminium body of the transmitters and to some of its components, preventing corrosion due to humidity or sudden changes in temperature and increasing reliability and longevity.

Q

HSS

With the Hot Swap System present in the transmitters it is possible to carry out maintenance on the power supplies with the machine on and on the air in less than 5 minutes as well as for the amplifiers in modular transmitters. Even the cooling fans can be removed, cleaned or replaced in just 5 minutes thanks to their placement outside the machine.

Q

RCS

Responsive Cooling System is an optimized and highly efficient cooling system. Thanks to the ability to react to changes in temperature of the transmitter or the environment, the system guarantees correct operation and optimal performance even in extreme climatic conditions or in the presence of high temperatures. The cooling system keeps the heat sink temperature at optimum levels.

Q

WEB

Extremely detailed and intuitive web interface with all main parameters fully controllable and adjustable. Ability to remotely check the status of the transmitter and set malfunction alerts via e-mail and/or trap for prompt intervention. Firmware that can also be updated remotely and an easy back-up system for personal data and configuration.

Q

N+1

The N+1 logic control units reduce the need for multiple backup transmitters by ensuring automatic switching in the event of a failure and automatic loading of the faulty transmitter configuration onto the spare one for a system always at full power.

Q

design

SMART DESIGN

Thanks to its research and development center, DB is constantly working to improve the design of its products so that the interaction between user and devices is always easier, more intuitive and maintenance faster and cheaper. The clever placement with direct access of the fans in the back and outside of the transmitters and amplifiers and that of the power units with easy access are the result. Such as the combination of latest generation RF combiner technology with ultracompact unbalancing dummy loads and a smart intercommunication interface between RF modules, drivers, and Logical Control System.

Q

INTL STANDARDS

Meets or exceeds all safety standards and international electrical specifications.

Q

COLOR DISPLAY

LCD display for easy navigation, viewing and setting management.

Q

CONTROL PANEL

Front panel with simple and intuitive controls. Buttons for direct activation of main parameters and indicator lights showing their status and signaling any malfunctions.

Q

BUILT-IN TECH

Stereo Generator

Stereo Generator: high performance built-in digital stereo encoder that provides separation typical > 65dB.

Q

65:1

Device equipped with VSWR (Voltage Standing Wave Ratio) 65:1 built-in protection to prevent load mismatch failures.

Frequency Agile Broadband

Frequency Agile Broadband

Q

Encodeur RDS

Encoder RDS (Sistema dati radio)

Q

OPTIONALS

AES/EBU

AES/EBU digital stereo audio interface

Q

Audio Over IP

Audio Over IP

Q

RDS

Radio Data System

Q

Alimentation électrique

Alimentazione elettrica ridondante

Q
